Honeywell Solaris XP 7990G Vertical Slot Scanner, 2D Imager Scan Pattern, 0-100K Lux Brightness, 6 m/s Motion Tolerance, 1D, 2D, PDF, Postal & OCR Decode Capability, Black | 7990GEL-2USBC-1

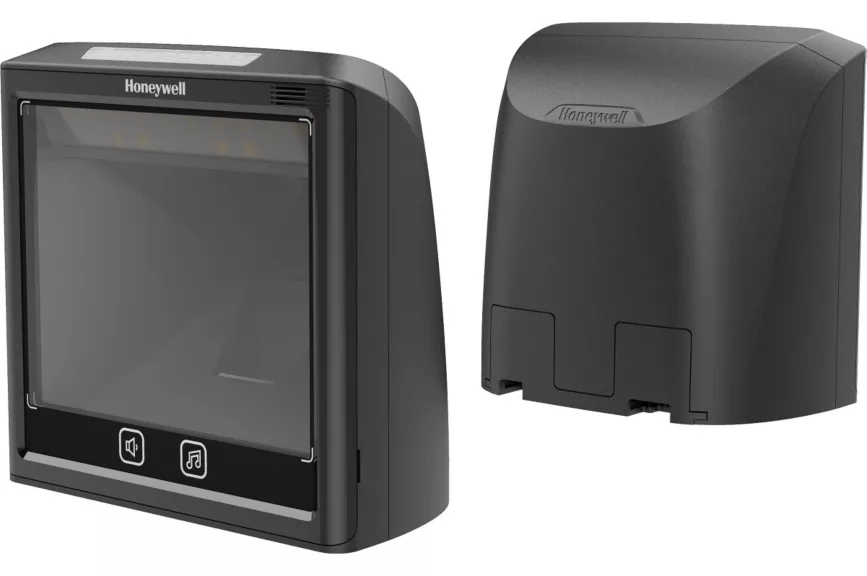

Solaris XP 7990G

With its compact, modern design and powerful imaging capabilities built on Honeywell’s extreme performance (XP) platform, the Solaris 7990g fits easily into existing enclosures used in high-volume retail checkout environments such as convenience, drug, specialty, liquor, and grocery stores. The Solaris XP features 20% faster scanning speed, up to 5 m/s motion tolerance, and a wider field of view than previous Solaris models. Honeywell’s field-proven XP technology handles poorly printed and damaged barcodes with ease. The Solaris XP is backwards compatible with previous models, making upgrades fast and simple.

Specifications

DIMENSIONS

Overall Dimensions (H x W x D): 148 mm x 152 mm x 85 mm (5.83 in x 5.98 in x 3.35 in)

SCANNING SPECIFICATIONS

Brightness 0-100k lux

Scan Pattern 2D imager

Decode Capability 1D, 2D, PDF, Postal, OCR

Motion Tolerance 6 m/s

HARDWARE

Engine Type XP

Host System Interface USB, RS232, Keyboard Wedge, IBM 46xx (RS485)

Wireless No

ENVIRONMENTAL

Operating Humidity 0 to 95% relative humidity non-condensing

Storage Temperature Range -20°C to 60°C / -4°F to 140°F

STANDARDS & APPROVALS

Protection Ratings IP53

OTHERS

Application Retail

Form Factor Slot Scanner

For Use With Auxiliary handheld scanners

Input Voltage 5.2 volts

Operating Temperature 0°C to 40°C (32°F to 104°F)
