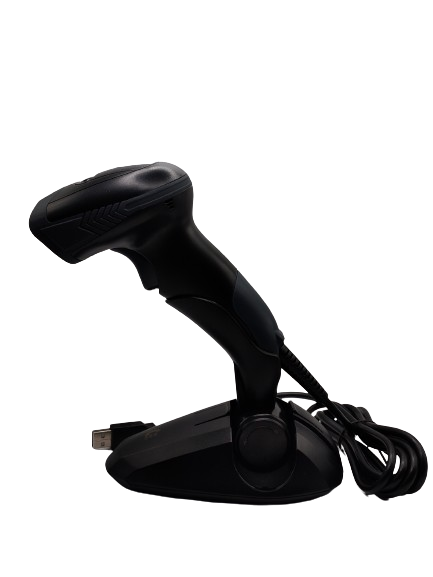

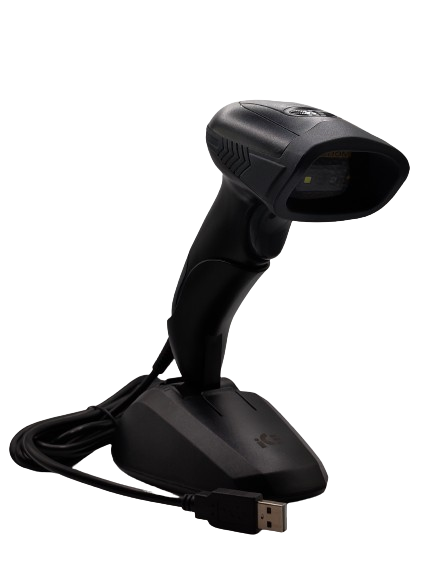

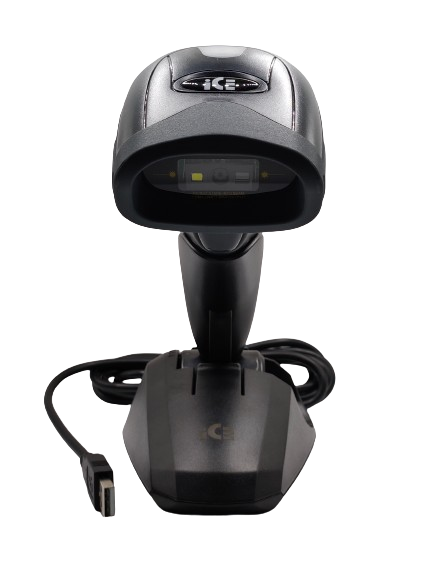

iCE ZIPSCAN IS-2220 2D Wired Barcode Scanner

Physical Parameters Dimensions: 79.7mm*69mm*155mm Weight: 113.4g Material: ABS+PC Cable Length: 2M

Electrical Parameters Voltage: DC5V±5% Opera�ng Current: 135mA

Performance Parameters

Scan Angle: Precision:

Yaw65°, Rotaion 30°, Pitch60° ≥5mil Scan Type: Image CMOS

Light Sources: 617nm LED Aimer, White LED

Scan Mode: Depth of scan field:

Interface: USB-HID, RS232

60-250mm

Supported Symbologies: 1D: Codabar, Code 11, Code 93, EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Interleave 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1-DataBar. 2D: QR Code, Data Matrix, PDF417.

Manual/Continuous/Automatic Scintillation

Less than 1/5millionError
